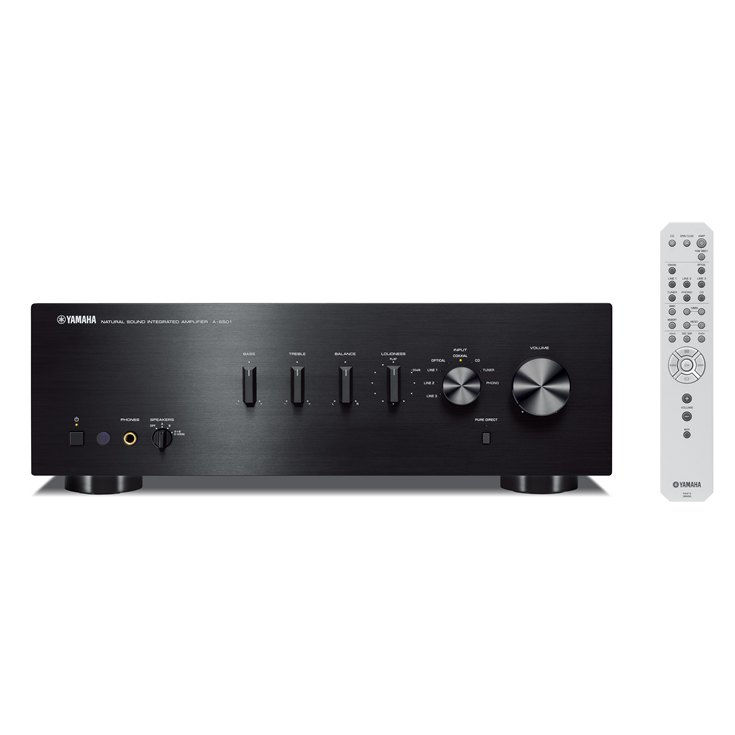

A-S501

"Impressive high quality sound with a wide range of features and an elegant appearance. An integrated amplifier with the advantage of digital inputs.

85 W x 2-ch (20 Hz - 20 kHz) Digital audio inputs for TV and Blu-ray Disc™ player Pure Direct mode for greater sound purity ToP-ART (Total Purity Audio Reproduction Technology) and high quality parts I/O (input to output) direct symmetrical design ART (Anti-Resonance and Tough) Base Custom-made power transformer / 12,000 µF block capacitors / extruded aluminum heat sinks Gold-plated speaker terminals and RCA terminals Simple yet sophisticated design (aluminum front panel) Continuously Variable Loudness Control"

Color

Headline

Integrated Amplifier

Specs



"Receiver / Integrated AmplifierMinimum RMS Output Power (8 ohms, 20 Hz-20 kHz)High Dynamic Power/Channel (8/6/4/2 ohms)Frequency ResponseTotal Harmonic Distortion (CD to Sp Out, 20 Hz-20 kHz)Signal-to-Noise Ratio (CD)Damping FactorDigital InputAudio In / OutSubwoofer OutPure DirectToP-ARTDC outStandby Power ConsumptionPower Management (Auto Power Standby)Dimensions (W x H x D)Weight A-S501 A-S501 Receiver / Integrated Amplifier Minimum RMS Output Power (8 ohms, 20 Hz-20 kHz)    85 W + 85 W (0.019% THD) High Dynamic Power/Channel (8/6/4/2 ohms)    130 / 150 / 185 / 220 W Frequency Response    10 Hz -100 kHz +/- 1.0 dB Total Harmonic Distortion (CD to Sp Out, 20 Hz-20 kHz)    0.019% (50 W / 8 ohms) Signal-to-Noise Ratio (CD)    99 dB (input shorted, 200 mV) Damping Factor    240 Digital Input    Yes (optical / coaxial) Audio In / Out    8 / 2 Subwoofer Out    Yes Pure Direct    Yes ToP-ART    Yes DC out    Yes Standby Power Consumption    0.5 W Power Management (Auto Power Standby)    Yes Dimensions (W x H x D)    17-1/8"" x 6"" x 15-1/4"" Weight    22.7 lbs."
